DRPP Overview

The Digital Retail Payments Platform (DRPP), is a project of COMESA being executed under the supervision of COMESA Business Council (CBC) and COMESA Clearing House (CCH). The goal of this platform is to enable real-time cross-border remittances between traders in the COMESA region. This platform will be based on the Open Source Mojaloop Software

Acronyms

DFSP Digital Financial Service Provider (Financial Institution)
DRPP Digital Retail Payments Platform
FXP Foreign Exchange Provider

Early Adopter Program

This is an initiative of the program implementers to work with a select group of DFSPs in Zambia and Malawi to collaboratively work on an initial release of the platform by collaborating with the financial institutions to address integration issues in preparation for the full rollout to other countries and financial institutions.

As an Early adopter you will get a tailored onboarding experience and access to dedicated support for the DRPP’s interoperability and regional financial inclusion efforts.

Simulation Customer Journey

Peter, using Equity Bank in Kenya with the local currency Kenyan Shillings (Ksh), initiates a payment to Otis, who banks with UBA in Zambia using a different local currency Zambian Kwacha (ZMW).

Both of these jurisdictions are participating in the COMESA Digital Retail Payment Platform (DRPP), a prefunded Inclusive and Instant Payment System (IIPS) compliant Regional Hub. The Local Schemes in Kenya and Zambia adhere to IIPS compliance and are either realized as upgraded national switches or emulated national IIPS (eNIIPS) operated by the DRPP on behalf of the local scheme.

When Peter sends money to Otis, the transaction is processed through an orchestrated interaction between his local bank, Equity, the Kenyan Local Scheme, the Regional Scheme (DRPP) including an FXP participating at the regional level providing foreign exchange between the two currencies, the Zambian local scheme and the recipient's bank UBA.

Taking a more detailed look at the transfer when Peter initiates a payment in Kenyan Shillings (Ksh) to Otis through his bank, Equity. If Peter's account with Equity is in good standing, Equity will submit the remittance request via the local scheme. If the recipient, Otis, is not local, the local scheme will forward the request to the DRPP’s Regional Hub. The Regional Hub, operating as a linked system, will inquire with other connected jurisdictional schemes to locate the potential recipient.

Once located Otis’ DFPS, UBA in Zambia confirms his account exists and is active, these recipient details are returned to Equity. Equity requests an agreement from Foreign Exchange Providers (FXPs) connected to the Regional Hub to provide liquidity cover in Zambian Kwacha (ZMW). The Regional Hub and recipient's local scheme, via Otis’ DFPS validates that Otis is in good standing and able to receive the payment. The commercial terms of the transfer and currency conversion are presented to Equity. Equity presents its corresponding retail terms to Peter, who acknowledges and accepts them. Upon acceptance, Equity initiates the irrevocable and non-repudiable transfer on Peter’s behalf, by this point Equity has reserved the funds from Peter’s account to ensure the payment will be covered.

The remitter's local scheme reserves liquidity by recording the obligation and passes confirmation of the request to the Regional Hub. The Regional Hub secures the destination currency from the FXPs' promised liquidity cover and informs the recipient's local scheme that the clearance transaction has been authorized. This results in a reservation of funds in the Zambian scheme that enable the recipient's Digital Financial Service Provider (DFSP), UBA to confirm that it has cleared funds from its working capital into Otis' account, with the expectation that at settlement the funds from the FXP will be transferred to UBA. This is upheld by the DRPP Scheme Rules that the Regional Hub and participating local scheme and their participants are all signatories of.

Upon successful processing and clearance of funds to Otis, the recipient's DFSP and, in turn, the local scheme notifies the Regional Hub. Subsequently, via the remitter's local scheme, Equity, and ultimately Peter will receive confirmation that Otis has received the payment.

Note: Central bank role remains that of oversight and regulation, monetary policy but are not financially obligated in the clearance and settlement flows.

Architecture

The architecture of the DRPP from the DFSP’s point of view consists of a network of DFSPs and FXPs all connecting to a central hub. The central hub broker’s messages between the DFSPs and FXPs to be able to perform cross border transactions.

In the DRPP, financial institutions can participate in the scheme either as DFSPs or FXPs. DFSPs are financial institutions that have customers that send and receive money. FXPs are financial institutions that provide foreign exchange between currency pairs to support cross-border transactions.

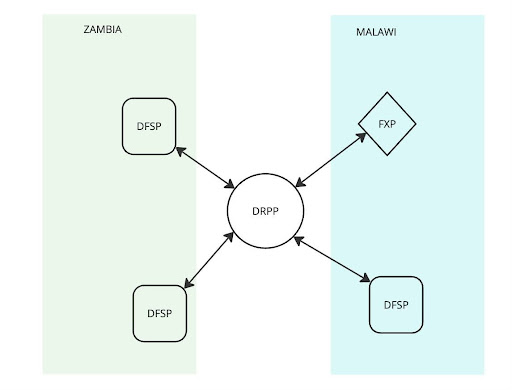

Here is an illustration that shows from a high level how the whole scheme is structured from a financial institution’s point of view.

DRPP Architecture

The DRPP is a representation of all the components in the platform that support routing of transfer requests to and from all participating financial institutions.

In production, each financial institution will be required to deploy a piece of software to run in their environment to facilitate the connection between the respective financial institutions and the DRPP.

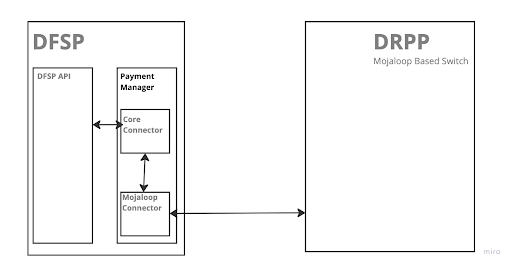

DFSP Setup

Payment Manager

This is a tool developed to support connectivity between the DFSP and the DRPP. The 2 components of concern from the DFSP perspective are the core connector and the mojaloop connector.

Core Connector

The core connector is a custom built middleware that provides an integration between the DFSP API and the mojaloop Connector.

Part of the work that must be done during an integration is the development of a core connector specifically for the DFSP being integrated. This is because DFSP APIs vary across different financial institutions.

Mojaloop Connector

The mojaloop connector is the middleware that brokers communication between the custom built core connector and the DRPP.

It is already built and will only need to be deployed as part of the Payment Manager services for it to be able to work for the DFSP being integrated.

For the Early Adopter Program, the Payment Managers will be hosted for the DFSPs in a managed environment. But when going into production, deployment tools will be provided to support the DFSPs in deploying the solution in their environments.

Payment Flows

An integration for a specific DFSP is supposed to support both incoming and outgoing payments.

Incoming Payments

Incoming payments from the perspective of a DFSP are payments that are destined for a specific customer account. They are intended for customers who will be receiving payments from other customers in the DRPP.

The core connector is built to support incoming payments. From the DFSP API, it requires the following information

How to get account information especially the name of the customer for a specific account number
How to validate that a specific account can receive a payment prior to committing funds
How to determine the cost of a transfer into a customer’s account
How to request a reservation of a funds for a customer before crediting to the account
How to send a disbursement request to credit a customer’s account with the reserved funds

Additional information required by the integration team is information from the DFSP about what we call “Working Capital Accounts”. From an incoming payments perspective, this is an account from which money will be disbursed to the beneficiary. It is held inside the DFSP and it is specifically for DRPP integration. More discussions can be held to talk about what this account will look like for incoming payments.

Outgoing Payments

Outgoing payments from the perspective of the DFSP are payments that are originating from the DFSP’s customers destined for other beneficiaries in the DRPP scheme.

The core connector is built to support outgoing payments. During the implementation of the integration to support outgoing payments, there is an important consideration to make.

DFSP Customer Application integration with core connector

From the DFSP API, the core connector needs to do the following to be able to support outgoing payments.

How to perform a refund when an outgoing payment into the scheme fails.

Customers can trigger outgoing payments through a customer facing application. Either USSD , Mobile or Web Application. This DFSP Customer application needs to send outgoing payment requests to the core connector so that the core connector can send outbound transfer messages to the DRPP through the mojaloop connector.

To review the core connector send money api, please click here to learn more

The DRPP supports two payment use cases. They include

P2P Normal Send Money
P2B Merchant Payment

Customer Journey

There are 2 use cases the DRPP intends to support and offer to customers. P2P and P2B. Here is a generic customer journey.

Customer Opens application or dials USSD code.
Customer enters payee identifier
Customer enters amount to send
Customer initiates the transfer by submitting the data
Application responds with transfer terms and name of the payee.
Customer reviews payment terms and payee details
Customer proceeds to abort or approve the transfer
If the customer approves, the funds are deducted from their account.

Step 4 represents the initial step of triggering the payment and step 7 represents the Confirm Send Money Step The approaches provided in the Confirm Send Money Approaches section address options for handling events from step 7 onwards.

Initial Step

The send-money customer journey begins when the customer expresses interest to send funds by specifying details about the payee and amount to send. This initiation step applies to both approaches going to be presented in this documentation.

Here is a sequence diagram that describes the process.

In this sequence diagram the DFSP Customer Facing application (USSD or Mobile App) receives some data from the customer about the payment details and then sends the data to a Core Connector middleware that is designed to retrieve information about the payee and how much it will cost to execute the transfer.

This step corresponds to the following requests in the api documentation.

POST /send-money
POST /merchant-payment

InitiateSendMoney

Confirm Send Money Approaches

In reference to the customer journey, this section presents 2 ways of handling the series of events from step 7. This is the point where if the customer has approved of the payment, either DFSP or the core connector middleware will take the responsibility of debiting funds from the customer account. These are the approaches shared here.

DFSP Handling Debit of Funds

In this approach, after the customer has reviewed the transfer terms, the name of the payee and has approved the transfer. DFSP Customer Application handles the debiting of funds from the customer account.

Here is a sequence diagram to show the steps from an DFSP and core connector perspective.

This step corresponds to the following requests in the api documentation

PUT /send-money/{transferId}
PUT /merchant-payment/{transferId}

DFSP Handled

Core Connector Initiating Debit of Funds

In this approach, after the customer has reviewed the transfer terms, the name of the payee and has approved the transfer. The Core Connector Middleware initiates debit of funds from the customer account.

Here is a sequence diagram to show the steps from an DFSP and core connector perspective.

This step corresponds to the following requests in the api documentation

PUT /send-money/{transferId}
PUT /merchant-payment/{transferId}
PUT /callback (This is a callback URL registered in DFSP Open API Portal)

CoreConnector Handled

Customer Identifiers

In the context of the Digital Retail Payment Platform (DRPP), customer identifiers play a critical role in enabling accurate and efficient routing of cross-border, real-time payments. Each Digital Financial Services Provider (DFSP) is responsible for managing and registering customer identifiers as part of their integration with the DRPP.

DFSP Responsibilities:

Identifier Selection
Each DFSP must determine the type of customer payment identifier to be used within their systems (e.g., mobile number, national ID, email address, etc.).
Customer Communication
DFSPs are required to clearly inform their customers of the selected identifier type. Customers must understand what identifier to share with others who intend to send payments to them.
Registration with DRPP
DFSPs must register each customer identifier with the DRPP. This enables the platform to correctly route incoming payments to the appropriate DFSP and end-customer account.

Each DFSP must evaluate which identifier types align with their customer base and systems, and ensure accurate registration with the DRPP.

Identifier Selection

In the Digital Retail Payment Platform (DRPP), customer identifiers are central to ensuring payments are correctly routed across borders and currencies. These identifiers allow the DRPP to associate a payment with the correct recipient—whether an individual, merchant, business, or account.

Types of Identifiers

Broadly, identifiers fall into two categories:

Person or Merchant Identifiers – These are preferred as they are generally stable and easily communicated by customers. They refer to the identity of a participant rather than a specific account.
Account Identifiers – These directly reference specific financial accounts. While supported, they are more sensitive to changes and less user-friendly for customer communication.

The DRPP supports both categories, providing flexibility to DFSPs based on their customer needs and integration approach.

Identifier Structure

All identifiers consist of the following components:

Identifier Type (Required): Defines the nature of the identifier (e.g., MSISDN, EMAIL, IBAN).
Identifier (Required): The actual value used to identify the participant.
Sub-Identifier (Optional): Used to further disambiguate the identifier, ensuring uniqueness across the platform where necessary. For example, it may include the country code and DFSP identifier.

Supported Person or Merchant Identifiers Types

Type	Description
`MSISDN`	Mobile phone number in international format (ITU-T E.164). May be prefixed with a plus (+).
`EMAIL`	Email address in standard format as per RFC 3696.
`PERSONAL_ID`	Government-issued or national personal identification number. Type specified in `PartySubIdOrType`.
`BUSINESS`	Identifier representing a business or organization. May include `PartySubIdOrType` for internal references like invoice or customer ID.
`DEVICE`	Device ID such as POS terminal or ATM under a business. Use `PartySubIdOrType` for device-specific references.
`ALIAS`	Alternative reference such as a username. Flexible format, `PartySubIdOrType` can be used for sub-account reference.

Supported Account Identifiers Types

Type	Description
`ACCOUNT_ID`	Account number or ID within a financial service provider. Format is flexible.
`IBAN`	International Bank Account Number (up to 34 alphanumeric characters, no spaces).
`ALIAS`	Alternative reference similar to an IBAN that represents the account uniquely withing the DRPP

Best Practices for Identifier Selection

Selecting the appropriate identifier type is essential for usability, reliability, and long-term maintainability. DFSPs should consider the context in which identifiers will be used and the needs of their customer base when making this decision.

1. Retail Customers (Person-to-Person Payments)

Recommended Identifiers: MSISDN, EMAIL, PERSONAL_ID, ALIAS
Rationale: These identifiers are easy for individuals to remember and share. MSISDN and EMAIL are widely used and generally stable. ALIAS provides flexibility where users want privacy or branded usernames.
Notes: Encourage customers to register identifiers that are unlikely to change frequently (e.g., avoid temporary email addresses).

2. Merchants and Small Businesses

Recommended Identifiers: BUSINESS, DEVICE, ALIAS
Rationale: BUSINESS identifiers support organization-level payments, while DEVICE is useful for location-specific transaction routing (e.g., POS terminals). ALIAS can be used for branded payment handles.
Notes: Clearly communicate to merchants how their identifier will be presented to customers.

3. Corporate or Enterprise Customers

Recommended Identifiers: BUSINESS, ACCOUNT_ID, IBAN
Rationale: For precise account-level routing and compliance, financial identifiers like ACCOUNT_ID or IBAN are preferred. BUSINESS allows routing at the organization level, with optional PartySubIdOrType for department-level granularity.
Notes: Ensure account identifiers are validated and comply with country-specific formatting rules.

4. Government Disbursements or High-Trust Services

Recommended Identifiers: PERSONAL_ID, MSISDN
Rationale: These identifiers support identity verification and traceability. Useful for social payments, benefits, or regulated transfers.
Notes: Be aware of data protection requirements; sensitive identifiers should be securely handled and stored.

5. Agent Networks and Financial Devices

Recommended Identifiers: DEVICE, ACCOUNT_ID
Rationale: When payments need to be routed to a specific terminal or cash-out point, DEVICE provides traceability. ACCOUNT_ID ensures funds are credited to the correct back-end account.
Notes: Use PartySubIdOrType to differentiate devices within the same organization if needed.

Typical Identifier Examples

The following examples illustrate common approaches to identifier selection and formatting within the DRPP. Each approach has specific benefits and trade-offs depending on the use case, customer experience, and technical implementation.

MSISDN (e.g., `+256771234567`)

A mobile phone number in international format.

Pros:
- Familiar and easy for customers to remember and share.
- Typically unique and widely adopted in mobile-first markets.
- Low barrier to adoption, especially for retail customers.
Cons:
- Can change due to number portability or SIM replacement.
- May not be suitable for business or multi-account use cases.
- Regulatory or privacy concerns in some jurisdictions.
- May result in conflicts or duplication if both banks and mobile money operators register the same MSISDN for different accounts, potentially leading to ambiguity or incorrect routing.

ACCOUNT_ID with Sub-Identifier (e.g., `1234567890` with sub-ID `UG-ORG001`)

The account number identifies the customer, while the sub-ID encodes routing metadata such as country and organization.

Pros:
- Enables precise routing to specific financial accounts.
- Useful for DFSPs with complex account hierarchies.
- Sub-ID adds disambiguation and avoids global collisions.
Cons:
- Less user-friendly—customers are unlikely to remember or share it easily.
- Tightly coupled to internal DFSP systems; harder to abstract or change.
- Requires careful design of the sub-ID schema to avoid conflicts.

ALIAS with IBAN-like Format (e.g., `UG-ORG001-123456`)

An alias prefixed with a country code and organization ID to resemble an IBAN structure.

Pros:
- Standardized and predictable format that supports interoperability.
- Familiar to users in markets where IBANs are common.
- Easier to validate or parse programmatically.
Cons:
- Customers may require guidance to understand and use it correctly.
- May imply regulatory or formatting expectations not enforced by DRPP.
- Risk of format collisions if not governed consistently by the DFSP.

ALIAS using Merchant Code with Sub-Identifier (e.g., `12345` with sub-ID `UG-ORG001`)

An alias structure based on merchant code, while the sub-ID encodes routing metadata such as country and organization.

Pros:
- Suitable for business or merchant payment scenarios.
- Enables structured routing across countries and organizations.
- Supports scalability and decentralization in merchant onboarding.
Cons:
- May be opaque to end users unless explained well.
- Requires a consistent format and merchant code governance.
- Can increase complexity in validation and lookup processes.

DFSPs should select identifier strategies based on their customer segments, operational model, and long-term scalability considerations.

Customer Communication

Each DFSP maintains direct interaction with its own customers and is best positioned to determine how to communicate service details, including the use of payment identifiers.

The DRPP does not define or mandate how this communication should be carried out. However, for the platform to function effectively, it is important that customers are made aware of the identifier they should use when receiving payments via the DRPP.

The key requirement is that customers understand which identifier to share with others, ensuring payments can be correctly routed and received through the platform.

Registration with DRPP

To enable routing of payments through the Digital Retail Payment Platform (DRPP), customer identifiers must be registered with the platform. This registration is treated as an opt-in/opt-out process, allowing flexibility for both individual and bulk onboarding of customers.

Registration Approaches

There are two supported approaches for registering customer identifiers:

Individual Opt-In
A customer is registered on the DRPP individually, typically through a customer-driven action such as a consent flow, digital channel, or in-person onboarding.
Bulk Opt-In
Multiple customer identifiers are registered with the DRPP as part of a batch or pre-approved process. This is often used for onboarding existing customer bases or enterprise clients.

Integration Requirements

The DRPP provides a unified integration endpoint that supports both individual and bulk registration workflows, including opt-in and opt-out operations.

DFSPs must design and implement appropriate integration mechanisms to:

Facilitate customer opt-in and opt-out actions,
Manage registration lifecycle events (e.g., updates, removals),
Ensure that only active and authorized identifiers are registered on the platform.

The DRPP relies on this registration process to route payments accurately. DFSPs are encouraged to ensure registration flows are reliable, secure, and aligned with their internal customer management practices.

Foreign Exchange Providers (FXPs)

Foreign exchange providers will be the financial institutions in the scheme that provide foreign exchange services to support cross border transactions involving a currency pair.

To integrate an FXP into the scheme, they would also need to run an instance of the payment manager in their environment. They will also require a core connector to be built to support the integration for the FXP.

The foreign exchange provider’s core connector needs some information and apis to be able to perform its task.

How to get a quote for exchange of an amount in a currency to another currency.
How to confirm the transfer for a previously requested quote.

Here is the design for how the FXP core connector will interact with the FX API of the financial institution. The component that needs to be developed or should be present in the financial institution participating as an FXP is the FXP API.

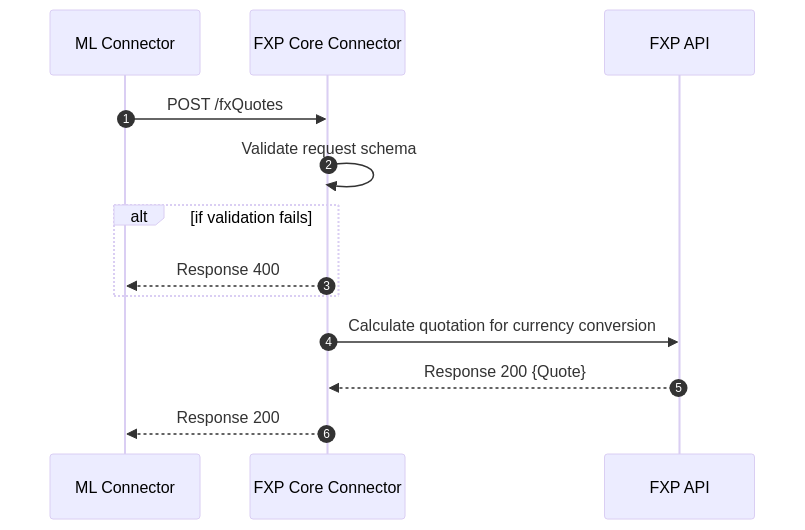

FX Quoting process design

This process shows the interaction between the FXP Core connector and the financial institution’s FXP api.

fxQuoting

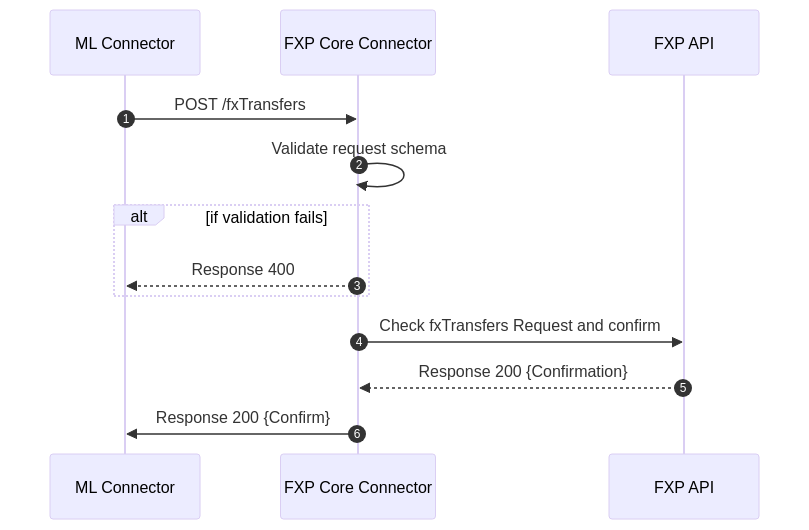

FX Transfer Confirmation

This process shows the interaction between the FXP core connector and FXP Api when confirming a transfer

fxTransfers
